Availability: 9 in stock

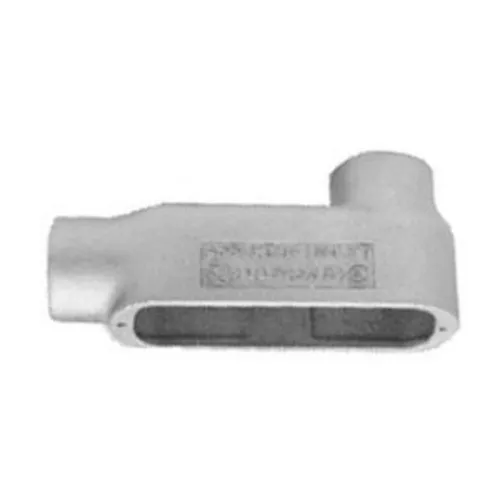

Form 35 UNILETS Type LB Conduit Outlet Body, Hub Size: 1 IN, Form: 35, Length: 6-1/4 IN, Height: 2.69 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Tapered Female Thread
| Catalog Number | LB100-M |
|---|---|
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| Connection | Tapered Female Threaded |
| Finish | Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat) |
| Form | 35 |
| Hub Size | 1 IN |
| Material | Malleable Iron |
| Special Features | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; High tensile strength and ductility, high corrosion resistance, high impact and shock resistance; Sizes with flat-back design ideal where fitting is mounted flat against surface; Wiring capacity: 12.5 CU-IN as per NEC 314.16(A) |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| UPC | 781381476300 |
| GTIN | 00781381476300 |
| Item Type | Type LB Conduit Outlet Body |
| Length | 6-1/4 |
| Length UOM | Inch |
| Height | 2.69 |
| Height UOM | Inch |
